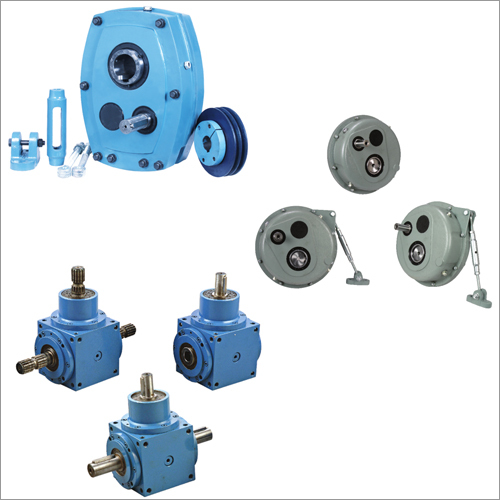

Speed Reduction Gearboxes
Product Details:
- Usage Industrial
- Product Type Gearboxes
- Color Blue and Grey
- Gear Type Cylindrical Gears
- Material Stainless Steel
- Processing Type Precision Casting
- Gearing Arrangement Cycloidal
- Supply Ability : 100 Piece Per Day
Price And Quantity
- 5 Piece
Product Specifications
- Cycloidal
- Cylindrical Gears
- Industrial
- Blue and Grey
- Precision Casting
- Stainless Steel
- Gearboxes
Trade Information
- Cheque, Cash in Advance (CID), Cash Advance (CA)
- 100 Piece Per Day
- 2-3 Days
- Sample costs shipping and taxes has to be paid by the buyer
- Western Europe, Central America, Australia, Eastern Europe, Asia, North America, South America, Middle East, Africa
- All India
Product Description
Speed Reduction GearboxesPowered by skilled and experienced professionals, we are indulged in offering Speed Reduction Gearboxes. Transmits mechanical power, the offered gearbox finds its application in turbines, automobiles and ferris wheel. Our entire range of gearbox is exported to distinct countries like India, Dubai, Oman, Muscat and Saudi Arabia. Strong in construction, the offered gearbox is manufactured by utilizing the latest techniques and optimum quality raw materials. Likewise, this Speed Reduction Gearboxes can be purchased from us in numerous dimensions at negotiable rates.
KEY FEATURES:
- Rust proof
- Sturdy design
- Precisely engineered
- High strength
Other Range of Gearboxes
Round Shaft Mounted Speed Reducer
| MODEL | Output Shaft ID | Output Shaft Key Size | Output Shaft Length | Input Shaft Puilt DIA | Input Shaft Key Size |
| OP 45-55 | 45 | 16 x 10 x 145 | 162 | 28 | 8 x 7 x 50 |
|
| 50 | 16 x 10 x 145 | 162 | 28 | 8 x 7 x 50 |
|
| 55 | 16 x 10 x 145 | 162 | 28 | 8 x 7 x 50 |
| OP 60-70 | 60 | 20 x 12 x 170 | 200 | 38 | 10 x 10 x 70 |
|
| 70 | 20 x 12 x 170 | 200 | 38 | 10 x 10 x 70 |
| Model | Rating at 40rmp 13(KW) 20:1 Ratio | Rating at 200rmp (KW) 5:1 Ratio | Height (mm) | Width (mm) | Depth (mm) | Standard Hub Bore (mm) | Alternative Hub Bore (mm) | Approx. Mass KG. 20:1 | 320 No. Oil Required Oil Limit |
| B | 1.05 | 2.99 | 226 | 186 | 134 | 30 | 40 | 17.00kg. | 1.5 to 2 ltr |
| C | 1.70 | 4.41 | 270 | 218 | 142 | 40 | 50 | 23.00kg. | 1.5 to 2 ltr |
| D | 2.84 | 7.26 | 328 | 258 | 152 | 50 | 55 | 34.00kg. | 2.5 to 3 ltr |
| E | 4.36 | 10.80 | 377 | 278 | 170 | 55 | 60 | 45.00kg. | 3.5 to 4 ltr |
| F | 6.85 | 15.50 | 414 | 317 | 189 | 65 | 70 | 72.00kg. | 5 to 5.5 ltr |
| G | 10.80 | 26.60 | 468 | 365 | 212 | 75 | 80 | 97.00kg. | 7.5 to 8 ltr |
| H | 16.90 | 38.10 | 550 | 434 | 242 | 85 | 90 | 146.00kg. | 10.5 to 11 ltr |
| J | 26.30 | 92.00 | 700 | 542 | 257 | 100 | 105 | 270.00kg. | 21 to 22 ltr |
| MODEL | CONVEYORS BELT SIXES OF SHAFT MOUNTED GEAR BOX |
| D | 18'' belt width x length 20ft, 30ft, 40ft, 50ft |
| E | 24'' belt width x length 30ft, 40ft, 50ft, 60ft |
| F | 30'' belt width x length 30ft, 40ft, 50ft, 60ft |
| G | 36'' belt width x length 30ft, 40ft, 50ft,60ft,70ft, 80ft,100ft |
| H | 48'' belt width x length 40ft, 60ft,70ft 80ft,100ft |
| J | 60'' belt width x length 40ft,60ft,80ft,100ft,150ft |
